Savonius Rotor ElvWiS I ALUMINIUM (90 W)

Two-stage full-metal Savonius rotor for wind turbines (DIY kit)

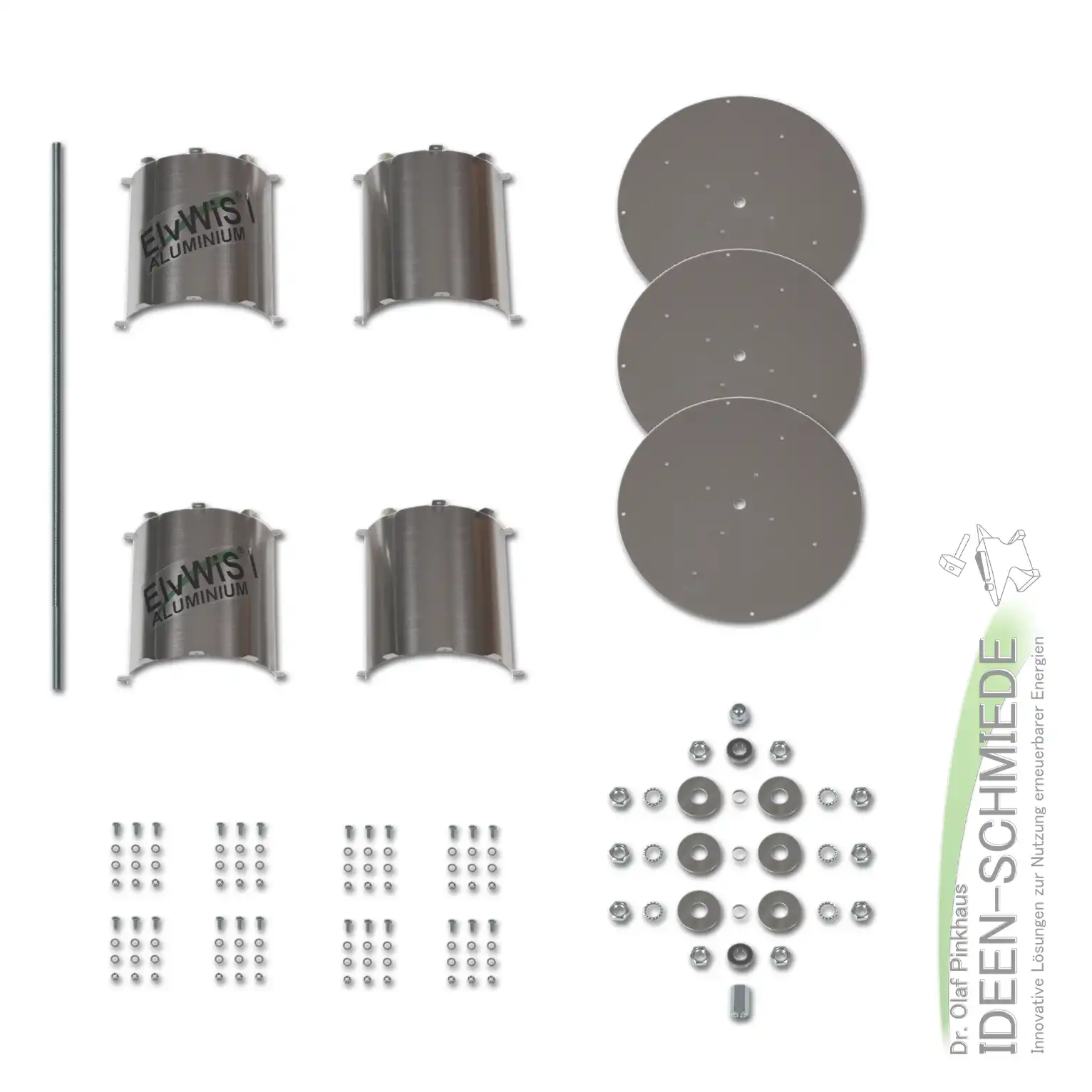

Rotor components disassembled, complete assembly material is included.
Protection against theft by screwing the components.
Fits perfect to the ALUMINIUM generator EGE200-VA (not included in this offer).

Important: To ensure long-lasting operation of your ALUMINUMrotor, always mount it in a holder at the top and at the bottom (also available separately or as a complete set).

Scope of supply

Rotor-axis (galvanized steel)
Rotor discs (Aluminium)
Rotor blades (Aluminium)
2 x Bearings (stainless steel, maintenance-free)
Assembly material (galvanized steel)
Operating and instructions manual (digital)

Technical data

Total weight: ca. 1.7 kg
Total height: ca. 55 cm
Material: seawater-resistant Aluminium
Spinning start: 0.5 - 1.0 m/s
Idling speed at 12 m/s: 1200 rpm
Operating range: 0.5 - 30 m/s
Operational noise: < Ambient noise / 30 dB max.
Dimensions of the rotor: B 32 x H 40 cm
Rotor nominal power at 12 m/s: 20 Watts
Rotor maximum power at 20 m/s: 94 Watts
Rotor type: Savonius rotor - 2 opposed C-shaped blades per level
Rotor features: All-rounder for gusty and even wind conditions, quick start and direct reaction to changing wind speeds, reduced rotation speed at higher wind forces.
Mounting options: For example, with a mount for mast mounting, firmly srewed and/or removable on (top)/under flat surfaces; horizontal or vertical mounting possible (on walls, roof top, boat deck/mast etc.).

Component details

Rotor axis: 1 piece
Construction: Solid M12 threaded rod made of galvanized steel.

Rotor disc: 3 pieces
Construction: Torsion-resistant, laser-cut disc made of seawater-resistant aluminum alloy.

Rotor blade: 4 pieces
Construction: Stable, laser-cut and aerodynamically shaped blade with flanged long edges made of seawater-resistant aluminum alloy.
